E550028 ECHU UL3135 Single-Conductor Silicone Rubber AWM Cable

Name: E550028 ECHU UL3135 Single-Conductor Silicone Rubber AWM Cable
Brand: Shanghai ECHU Wire and Cable Co., Ltd
SKU: UL3135
Price: 2.27 USD
Availability: InStock

Brand Name:	ECHU
Model Number:	UL3135
MOQ:	305M
Price:	USD1.265-USD3.639/M
Payment Terms:	T/T,, L/C
Supply Ability:	100000km/week

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai China

Certification:

Color:

Yellow, Green, Yellow/green, Black, White.....

Insulation:

Silicon Rubber

Voltage:

600V

Temperature:

-60ºC To +200ºC

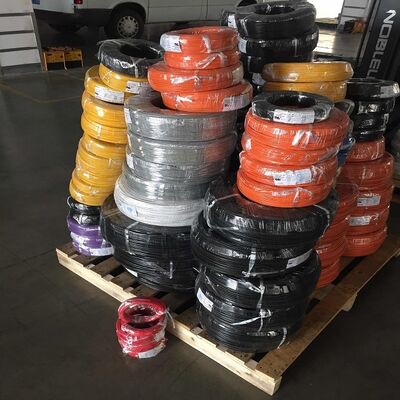

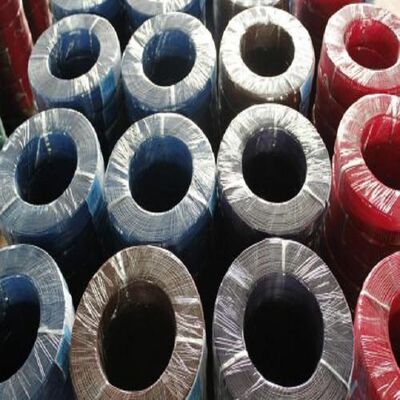

Packaging Details:

100M/Roll or according to customer requirement

Supply Ability:

100000km/week

Product Description

UL3135 Single-Conductor Silicone Rubber AWM Cable

UL3135 is a high-temperature silicone wire complying with UL758 Appliance Wiring Material standard.

• Construction

Conductor: Solid or Class 5 flexible stranded bare / tinned copper;

Insulation: Extruded silicone rubber (SR).

• Electrical & Thermal Ratings

Rated Voltage: 600V AC

Rated Temperature: 200°C (dry locations)

Operating temperature range: -60°C ~ +200°C

• Flame Performance

Self-extinguishing, meets UL FT2 horizontal flame test.

• Key Features

Superior flexibility, excellent heat resistance, low-temperature resistance, ozone resistance, UV resistance and chemical resistance. Stable dielectric performance; uniform insulation thickness for easy stripping. Halogen-free and RoHS compliant. Widely adopted as motor lead wire for Class H insulation systems.

• Typical Applications

Internal wiring for household appliances, heating equipment, lighting fixtures, motors, transformers, generators, electronic instruments, new energy equipment and industrial machinery under high-temperature operating conditions.

UL3135	Conductor		Over	Insulator			Technical Data		Packing(m/roll)
UL3135	Conductor		Diamter	Insulator			Technical Data
Size	Conductor	Diameter	±0.05mm²	Material	Average	Colour	Temperature Range(ºC)	Nominal voltage
	Construction	mm			Thickness
	No./mm				mm
26AWG	7/0.16	0.489	2.01	silicone	0.761	red,yellow,	below 60ºC~+200ºC	600V	610
25AWG	7/0.18	0.550	2.07	rubber	0.76	blue,green,			610
24AWG	11/0.16	0.612	2.14		0.764	black,white,			610
23AWG	17/0.14	0.666	2.19		0.762	purple,brown,			610
22AWG	17/0.16	0.761	2.29		0.764	orange,			610
21AWG	21/0.16	0.846	2.37		0.762	yellow-green,			610
20AWG	26/0.16	0.942	2.47		0.764	transparent			610
19AWG	33/0.16	1.061	2.58		0.759				610
18AWG	41/0.16	1.182	2.71		0.763				610
17AWG	33/0.20	1.326	2.85		0.762				305
16AWG	26/0.254	1.495	3.02		0.762				305
15AWG	65/0.18	1.675	3.20		0.762				305
14AWG	41/0.254	1.877	3.40		0.761				305
13AWG	52/0.254	2.114	3.64		0.762				305
12AWG	65/0.254	2.399	3.92		0.759				305
