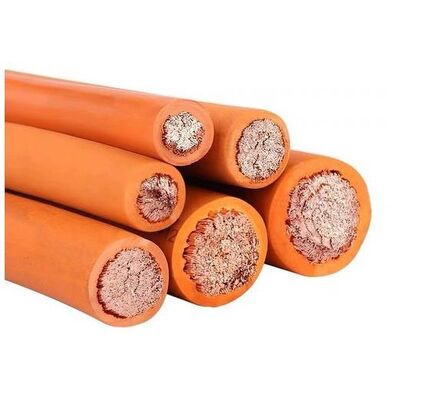

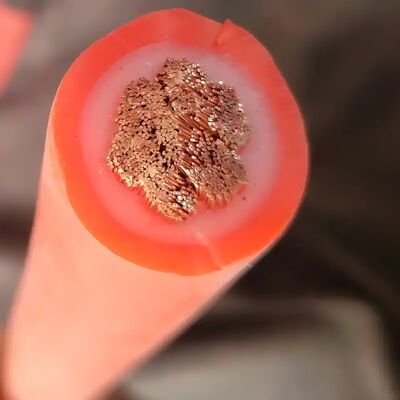

E550028 ECHU CABLE UL3641 180°C 3300V Silicone Rubber Single-Core Cable

E550028 ECHU CABLE UL3641 180°C 3300V Silicone Rubber Single-Core Cable

E550028 ECHU CABLE UL3641 180°C 3300V Silicone Rubber Single-Core Cable

Brand Name: ECHU
Model Number: UL3641
MOQ: 305M
Price: USD1.265-USD3.639/M
Payment Terms: T/T,, L/C
Supply Ability: 100000km/week
Detail Information
Product Description
Detail Information
Place of Origin:
Shanghai China
Certification:
UL
Color:
Yellow, Green, Yellow/green, Black, White.....
Insulation:
Silicon Rubber
Voltage:
3300V
Temperature:
-60ºC To +180ºC
Packaging Details:
100M/Roll or according to customer requirement
Supply Ability:
100000km/week
Product Description



UL3641 Single-Conductor Silicone Rubber AWM Cable



UL3641 is a high-voltage & high-temperature silicone wire complying with UL758 Appliance Wiring Material standard.

  • Construction Conductor: Solid or Class 5 flexible stranded bare / tinned copper (16AWG ~ 600kcmil); Insulation: Extruded silicone rubber (SR).
  • Electrical & Thermal Ratings Rated Voltage: 3300V AC Rated Temperature: 150°C / 180°C (dry locations) Operating temperature range: -60°C ~ +180°C
  • Flame Performance Self-extinguishing, meets UL FT2 horizontal flame test.
  • Key Features Excellent flexibility, outstanding heat resistance, low-temperature resistance, ozone resistance, UV resistance and chemical resistance. High dielectric strength for high voltage circuits. Uniform insulation thickness for easy stripping; halogen-free and RoHS compliant. Fiberglass braid covering is optional.
  • Typical Applications Internal wiring for high-temperature electrical equipment, motors, transformers, heating devices, ovens, inverters, new energy equipment and industrial machinery.



Item UL3641 180°C 3300V Silicone Rubber Single-Core Cable
Conductor Flexible Stranded Copper Conductor
Insulation Silicone Rubber
Outer Sheath Not Applicable
Nominal Voltage 3300V
Test voltage 7000V
Temperature Range -60°C/+180°C
Color Optional
Application This cable is mainly used for internal wiring in high temperature areas such as household appliances. lighting, heaters, motors, dryers, ovens, etc.







E550028 ECHU CABLE UL3641 180°C 3300V Silicone Rubber Single-Core Cable
