E550028 ECHU UL30056 Single-Conductor Silicone Rubber AWM Cable

Name: E550028 ECHU UL30056 Single-Conductor Silicone Rubber AWM Cable
Brand: Shanghai ECHU Wire and Cable Co., Ltd
SKU: UL30056
Price: 2.27 USD
Availability: InStock

Brand Name:	ECHU
Model Number:	UL30056
MOQ:	305M
Price:	USD1.265-USD3.639/M
Payment Terms:	T/T,, L/C
Supply Ability:	100000km/week

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai China

Certification:

Color:

Yellow, Green, Yellow/green, Black, White.....

Insulation:

Silicon Rubber

Voltage:

3000V

Temperature:

-60ºC To +200ºC

Packaging Details:

100M/Roll or according to customer requirement

Supply Ability:

100000km/week

Product Description

UL30056 Single-Conductor Silicone Rubber AWM Cable UL30056 is a high-temperature & high-voltage silicone wire compliant with UL758 Appliance Wiring Material standard.

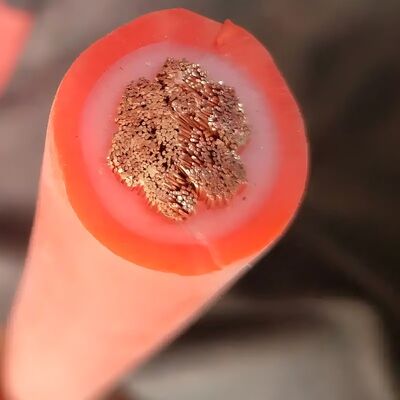

Construction Conductor: Class 5 flexible stranded bare or tinned copper; Insulation: Extruded silicone rubber (SR).
Electrical & Thermal Ratings Rated Voltage: 3000V AC Operating Temperature: -60°C ~ +200°C (dry locations)
Flame Performance Self-extinguishing, meets UL FT2 horizontal flame test.
Key Features Excellent flexibility, superior heat resistance, low-temperature resistance, ozone resistance, UV resistance and chemical resistance. High dielectric strength for high voltage circuits; halogen-free and RoHS compliant. Uniform insulation thickness enables easy stripping.
Typical Applications Internal wiring for inverters, heating equipment, ovens, motors, household appliances, industrial machinery and new energy devices under high-temperature conditions.

UL758 approval 200ºC UL30056 high heat resistant soft silicone rubber single conductor cable
Item	UL30056 Silicone rubber cables
Conductor	Bare copper
Insulation	Silicone Rubber
Rated Voltage	3000V
Temperature Range	Maximum Working Temperature: -60ºC to +200ºC
Color	Optional
Application	UL/CSA approved, temperature resistant silicone single core for the internal wiring of switch cabinets, electrical and electronic devices; for use in iron, steel and rolling mills, foundries, and cement, glass and ceramic factories.
