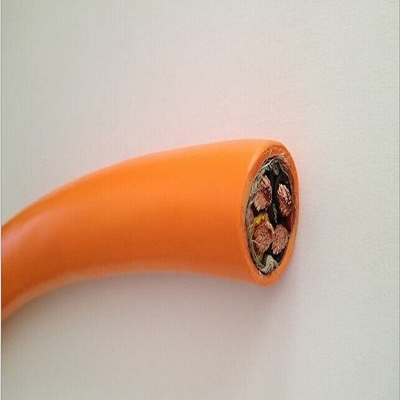

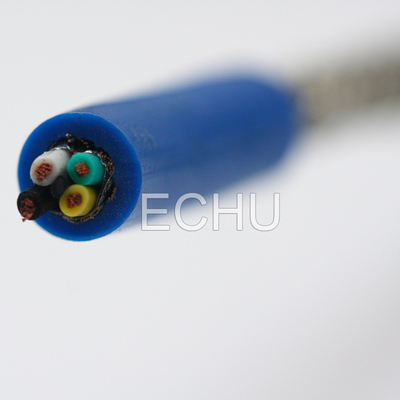

CE Standard Round Control Cable, ECHU Copper Control Cable

Brand Name:	ECHU
Model Number:	EKF200 00
MOQ:	300M
Price:	negotiatie
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	100000km/week

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai, China

Certification:

CCC, CE

H05VV-F:

4Cx1sqmm

Voltage:

300/500V; 450/750V

Packaging Details:

wooden reel/wooden box

Supply Ability:

100000km/week

Product Description

CE Standard Round Control Cable
Applications:
Working as connecting and control cable under dry or wet indoor stituation, especially for kinds of electronic installation of industrial condition. The cable Cross section area 0.5sqmm or upper could work as control and connecting cable in machine tool manufacture, whole set equipment installation, power station, belching and air conditionor installation, For its special flexibility, it could also work in installation or fixation.
Properties:
For PVC's high mechanical property, excellent insulation, good chemistry stability, water resistance, Coloured core identification cable has more excellenct capability and safety service.

Structure:
Conductor: Copper acc. VDE0295 CLASS 5
Insulation: Special PVC
Color: <0.5mm Color signed acc. to DIN47100
>0.5mm Black number with white series number, if more than 3 cores will have yellow and green earth wire
Inner Liner: PP or non-woven for buffer
Sheath: PVC 70C sheath, Black(RAL9005) or Grey (RAL7001), or other colors
Standard: JB8734.4-1998, GB5023.5-2008
Technical Data:
Minimum bending diameter:
Fixed installation: 15Xouter diameter
Flexing Installation: 6xouter diameter
Temperature range:
Flexing Installation: -10C to +80C
Fixed Installation: -30C to +80C
Test voltage: <0.5mm: 2000V ; >0.5mm 2500V
Working Voltage: <0.5mm 300/300V, >0.5mm 300/500V
Optioanl: Flat Cable

Type	Specification	Conductor No.	Conductor Dia	Weight KG/KM	O.D. Down	O.D. Up
H05VV-F	0.75*2C	24	0.2	64.8	6.3	6.8
H05VV-F	0.75*3C	24	0.2	77.2	6.7	7.2
H05VV-F	0.75*4C	24	0.2	93	7.3	7.8
H05VV-F	0.75*5C	24	0.2	113.7	8.1	8.6
H05VV-F	0.75*6C	24	0.2	135.6	9.1	9.6
H05VV-F	0.75*7C	24	0.2	149.1	9.1	9.6
H05VV-F	0.75*8C	24	0.2	178.4	10.2	10.8
H05VV-F	0.75*9C	24	0.2	204.4	11.3	11.9
H05VV-F	0.75*10C	24	0.2	230.9	12.1	12.7
H05VV-F	0.75*11C	24	0.2	251.3	12.6	13.2
H05VV-F	0.75*12C	24	0.2	260.7	12.6	13.2
H05VV-F	0.75*13C	24	0.2	285.5	13.3	13.9
H05VV-F	0.75*14C	24	0.2	294.6	13.3	13.9
H05VV-F	0.75*15C	24	0.2	321.3	14	14.6
H05VV-F	0.75*16C	24	0.2	333.3	14	14.6
H05VV-F	0.75*17C	24	0.2	361.1	14.7	15.5
H05VV-F	0.75*18C	24	0.2	370.4	14.7	15.5
H05VV-F	0.75*19C	24	0.2	383.9	14.7	15.5
H05VV-F	0.75*20C	24	0.2	400.9	15.1	16.1
H05VV-F	0.75*21C	24	0.2	421.9	15.5	16.5
H05VV-F	0.75*22C	24	0.2	430.5	16.6	17.6
H05VV-F	0.75*23C	24	0.2	455	17.4	18.4
H05VV-F	0.75*24C	24	0.2	468.5	17.4	18.4
H05VV-F	0.75*25C	24	0.2	487.7	17.8	18.8
H05VV-F	0.75*26C	24	0.2	501.2	17.8	18.8
H05VV-F	0.75*27C	24	0.2	514.7	17.8	18.8
H05VV-F	0.75*28C	24	0.2	538.2	18.5	19.5
H05VV-F	0.75*29C	24	0.2	551.7	18.5	19.5
H05VV-F	0.75*30C	24	0.2	565.2	18.5	19.5
H05VV-F	0.75*31C	24	0.2	590	19.3	20.3
H05VV-F	0.75*32C	24	0.2	603.5	19.3	20.3
H05VV-F	0.75*33C	24	0.2	617	19.3	20.3
H05VV-F	0.75*34C	24	0.2	642.8	20.1	21.5
H05VV-F	0.75*35C	24	0.2	656.3	20.1	21.5
H05VV-F	0.75*36C	24	0.2	669.8	20.1	21.5
