Flexible LIYCY (TP) Control Data Cable, ECHU Electrical Cable

Brand Name:	ECHU
Model Number:	EKF200 00
MOQ:	300M
Price:	negotiatie
Payment Terms:	T/T, Western Union
Supply Ability:	100000km/week

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai, China

Certification:

CCC, CE

Type:

LiYY

Voltage:

300/500V

Packaging Details:

wooden reel/wooden box

Supply Ability:

100000km/week

Product Description

Round Control Cable
Applications:
Working as connecting and control cable under dry or wet indoor stituation, especially for kinds of electronic installation of industrial condition. The cable Cross section area 0.5sqmm or upper could work as control and connecting cable in machine tool manufacture, whole set equipment installation, power station, belching and air conditionor installation, For its special flexibility, it could also work in installation or fixation.
Properties:
For PVC's high mechanical property, excellent insulation, good chemistry stability, water resistance, Coloured core identification cable has more excellenct capability and safety service.

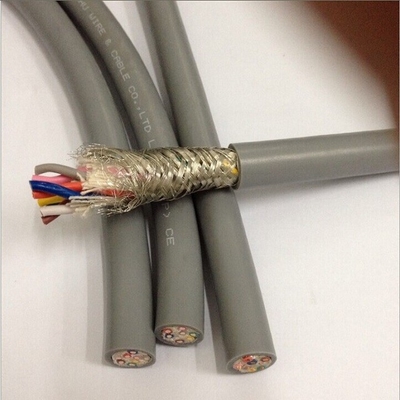

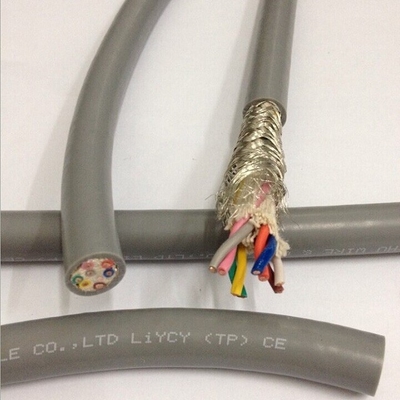

Structure:
Conductor: Copper acc. VDE0295 CLASS 5
Insulation: Special PVC
Color: <0.5mm Color signed acc. to DIN47100
>0.5mm Black number with white series number, if more than 3 cores will have yellow and green earth wire
Inner Liner: PP or non-woven for buffer
Sheath: PVC 70C sheath, Black(RAL9005) or Grey (RAL7001), or other colors
Standard: JB8734.4-1998, GB5023.5-2008
Technical Data:
Minimum bending diameter:
Fixed installation: 15Xouter diameter
Flexing Installation: 6xouter diameter
Temperature range:
Flexing Installation: -10C to +70C
Fixed Installation: -30C to +70C
Test voltage: <0.5mm: 2000V ; >0.5mm 2500V
Working Voltage: <0.5mm 300/300V, >0.5mm 300/500V
Optioanl: Flat Cable

Type	Pairs	Specification	Conductor No.	Conductor Dia	Weight KG/KM	O.D.
LIYCY(TP)	2	0.34*2C	7	0.25	53.8	7
LIYCY(TP)	3	0.34*2C	7	0.25	66.8	7.3
LIYCY(TP)	4	0.34*2C	7	0.25	85	8.1
LIYCY(TP)	5	0.34*2C	7	0.25	99.9	8.8
LIYCY(TP)	6	0.34*2C	7	0.25	119.6	9.7
LIYCY(TP)	7	0.34*2C	7	0.25	130.8	9.7
LIYCY(TP)	8	0.34*2C	7	0.25	151.3	10.6
LIYCY(TP)	9	0.34*2C	7	0.25	168.6	11.5
LIYCY(TP)	10	0.34*2C	7	0.25	190.2	12.4
LIYCY(TP)	11	0.34*2C	7	0.25	203.9	12.7
LIYCY(TP)	12	0.34*2C	7	0.25	215.2	12.7
LIYCY(TP)	13	0.34*2C	7	0.25	237.6	13.6
LIYCY(TP)	14	0.34*2C	7	0.25	248.8	13.6
LIYCY(TP)	15	0.34*2C	7	0.25	265	14.3
LIYCY(TP)	16	0.34*2C	7	0.25	276.2	14.3
LIYCY(TP)	17	0.34*2C	7	0.25	299.8	15.2
LIYCY(TP)	18	0.34*2C	7	0.25	311	15.2
LIYCY(TP)	19	0.34*2C	7	0.25	322.2	15.2
LIYCY(TP)	20	0.34*2C	7	0.25	336.3	15.5
LIYCY(TP)	21	0.34*2C	7	0.25	350.2	15.8
LIYCY(TP)	22	0.34*2C	7	0.25	376.8	17
LIYCY(TP)	23	0.34*2C	7	0.25	402.4	17.9
LIYCY(TP)	24	0.34*2C	7	0.25	413.6	17.9
LIYCY(TP)	25	0.34*2C	7	0.25	428	18.2
LIYCY(TP)	26	0.34*2C	7	0.25	439.2	18.2
LIYCY(TP)	27	0.34*2C	7	0.25	450.4	18.2
LIYCY(TP)	28	0.34*2C	7	0.25	467	18.8
LIYCY(TP)	29	0.34*2C	7	0.25	478.2	18.8
LIYCY(TP)	30	0.34*2C	7	0.25	489.4	18.8
LIYCY(TP)	31	0.34*2C	7	0.25	515.8	19.7
LIYCY(TP)	32	0.34*2C	7	0.25	527.1	19.7
LIYCY(TP)	33	0.34*2C	7	0.25	538.3	19.7
LIYCY(TP)	34	0.34*2C	7	0.25	556	20.3
LIYCY(TP)	35	0.34*2C	7	0.25	567.2	20.3
LIYCY(TP)	36	0.34*2C	7	0.25	578.4	20.3
