E550028 ECHU UL Rubber Cable Single conductor with extruded EPDM insulaiton UL3374 26AWG -500Kcmil 125 or 150 deg C, 600 Vac, 750 Vdc with UL certificate

Name: E550028 ECHU UL Rubber Cable Single conductor with extruded EPDM insulaiton UL3374 26AWG -500Kcmil 125 or 150 deg C, 600 Vac, 750 Vdc with UL certificate
Brand: Shanghai ECHU Wire and Cable Co., Ltd
SKU: UL3374
Price: 6.11 USD
Availability: InStock

Brand Name:	ECHU
Model Number:	UL3374
MOQ:	300M
Price:	USD0.11-USD12.88/M
Payment Terms:	TT, Western Union, L/C
Supply Ability:	100000km/week

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai, China

Certification:

Type:

UL3374

Insulation:

EPDM

Conductor:

Stranded Copper

Certificate:

Certificate No.:

E550028

Voltage:

600V， 750V

Temperature:

125℃, 150℃

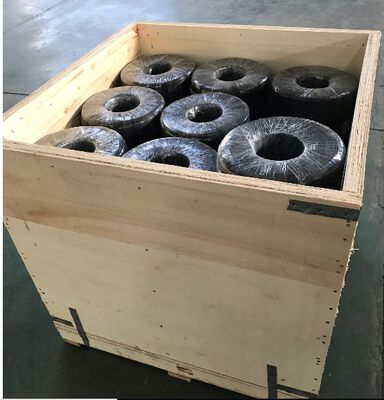

Packaging Details:

wooden reel

Supply Ability:

100000km/week

Product Description

EPDM insulation Cable UL CABLE UL3374

UL Approval

Rating: 125 or 150 deg C, 600 Vac, 750 Vdc, Horizontal flame.

Conductor: 26 AWG - 500 kcmil, solid or stranded

Standard: Appliance Wiring Material UL 758

Application:
Internal wiring of appliances where exposed to temperatures not exceeding 125 deg C. Where no flexing occurs, either after installation or during servicing, temperature not to exceed 150 deg C.

E550028 ECHU UL Rubber Cable Single conductor with extruded EPDM insulaiton UL3374 26AWG -500Kcmil 125 or 150 deg C, 600 Vac, 750 Vdc with UL certificate 0

Type	Size	O.D.(mm)	Weight(KG/KM)
UL3374	26AWG	3	12
UL3374	25AWG	3	13
UL3374	24AWG	3.1	14
UL3374	23AWG	3.1	15
UL3374	22AWG	3.2	16
UL3374	21AWG	3.3	17
UL3374	20AWG	3.4	19
UL3374	19AWG	3.5	21
UL3374	18AWG	3.7	23
UL3374	17AWG	3.8	25
UL3374	16AWG	4	29
UL3374	15AWG	4.2	34
UL3374	14AWG	4.4	39
UL3374	13AWG	4.6	45
UL3374	12AWG	4.8	53
UL3374	11AWG	5.3	65
UL3374	10AWG	5.7	77
UL3374	9AWG	6	94
UL3374	8AWG	7.2	124
UL3374	7AWG	7.7	148
UL3374	6AWG	8.8	186
UL3374	5AWG	9.5	225
UL3374	4AWG	10.2	272
UL3374	3AWG	11.2	332
UL3374	2AWG	12.1	405
UL3374	1AWG	14.2	529
UL3374	1/0AWG	15.3	645
UL3374	2/0AWG	16.7	793
UL3374	3/0AWG	18.2	977
UL3374	4/0AWG	19.9	1207
