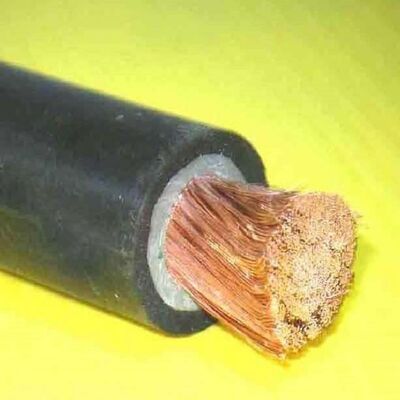

E550028 ECHU UL Rubber Cable Single conductor with extruded EPDM insulaiton UL3614 26AWG -500Kcmil 1000V 125℃, 150℃ with UL certificate

Name: E550028 ECHU UL Rubber Cable Single conductor with extruded EPDM insulaiton UL3614 26AWG -500Kcmil 1000V 125℃, 150℃ with UL certificate
Brand: Shanghai ECHU Wire and Cable Co., Ltd
SKU: UL3614
Price: 6.10 USD
Availability: InStock

Brand Name:	ECHU
Model Number:	UL3614
MOQ:	2000meter per size
Price:	USD0.1-USD12.89/M
Payment Terms:	TT, Western Union, L/C
Supply Ability:	100000km/week

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai, China

Certification:

Type:

UL3614

Insulation:

EPDM

Conductor:

Stranded Copper

Certificate:

Certificate No.:

E550028

Packaging Details:

wooden reel

Supply Ability:

100000km/week

Product Description

EPDM insulation Cable UL CABLE UL3614

UL Approval

Rating: 125 deg C, No flexing for 150 deg C, 1000 Vac, Horizontal flame.

Conductor: 26 AWG - 500 kcmil, solid or stranded

Standard: Appliance Wiring Material UL 758

Application:
Internal wiring, where no flexing occurs either after installation or during servicing.

E550028 ECHU UL Rubber Cable Single conductor with extruded EPDM insulaiton UL3614 26AWG -500Kcmil 1000V 125℃, 150℃ with UL certificate 0

Type	Size	O.D.(mm)	Weight(KG/KM)
UL3614	26AWG	3	13
UL3614	25AWG	3.1	13
UL3614	24AWG	3.2	14
UL3614	23AWG	3.2	15
UL3614	22AWG	3.3	16
UL3614	21AWG	3.4	17
UL3614	20AWG	3.5	19
UL3614	19AWG	3.6	21
UL3614	18AWG	3.7	23
UL3614	17AWG	3.9	26
UL3614	16AWG	4	30
UL3614	15AWG	4.2	34
UL3614	14AWG	4.4	39
UL3614	13AWG	4.7	46
UL3614	12AWG	4.9	53
UL3614	11AWG	5.4	65
UL3614	10AWG	5.7	78
UL3614	9AWG	6.1	95
UL3614	8AWG	7.2	124
UL3614	7AWG	7.7	148
UL3614	6AWG	8.8	186
UL3614	5AWG	9.5	225
UL3614	4AWG	10.2	272
UL3614	3AWG	11.2	332
UL3614	2AWG	12.1	405
UL3614	1AWG	14.2	529
UL3614	1/0AWG	15.3	645
UL3614	2/0AWG	16.7	793
UL3614	3/0AWG	18.2	977
UL3614	4/0AWG	19.9	1207
