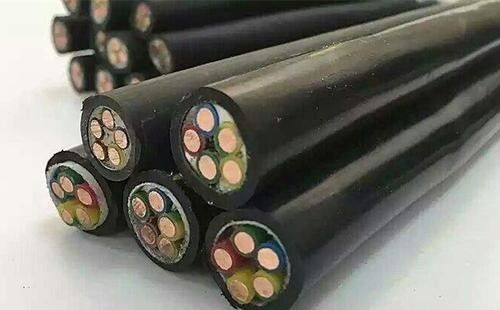

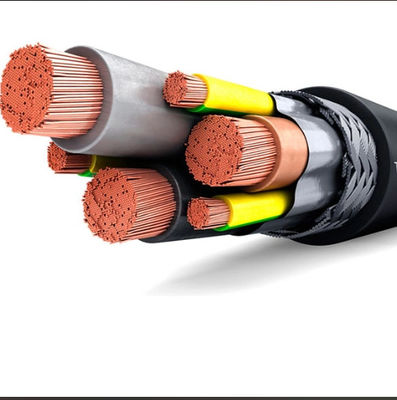

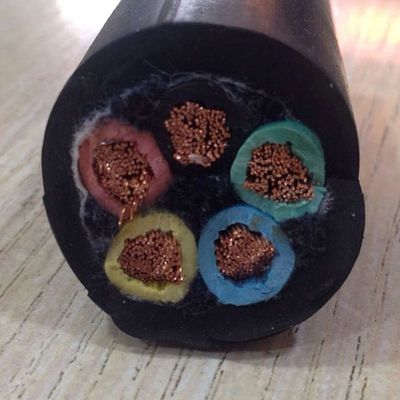

VFD Double shield cables for steel factory In Viet Nam-ZR-BPYJVRP

Name: VFD Double shield cables for steel factory In Viet Nam-ZR-BPYJVRP
Brand: Shanghai ECHU Wire and Cable Co., Ltd
SKU: ZR-BPYJVRP
Price: 28.91 USD
Availability: InStock

Brand Name:	ECHU
Model Number:	ZR-BPYJVRP
MOQ:	100M
Price:	USD0.912-USD58.212/M
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000km/week

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai, China

Certification:

Conductor:

Bare Copper

Insulation:

XLPE

Jacket:

PVC

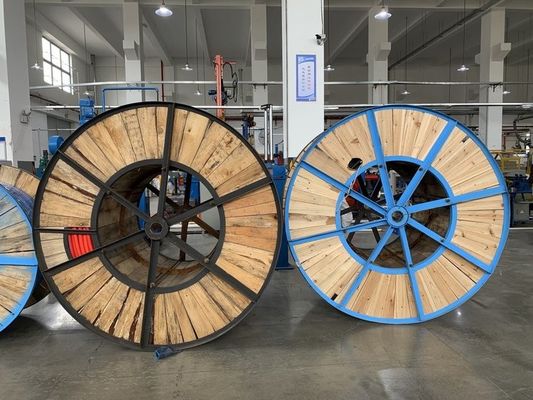

Packaging Details:

wooden reel

Supply Ability:

1000km/week

Product Description

Application:

The cable is used as power supply cables or electrical connection of inverter control system at AC rated voltage 0.6/1KV or less

Working Condition:

1.AC rated voltage Uo/U:0.6/1KV

2.Max working temperature PVC insulation is 70ºC,XLPE insulation is 90ºC

3.Min. enviroment temperature XLPE sheathed cable shall be not less than -70ºC ,PVC sheath cable shall be not less than -25ºC

4.Enviroment temperature shall be not less than 0ºC for cable in-stallation.

5.Min.bending radius for installation shall be 15 times outer diameter of cable.

Type and Name:

Type	name
BPVVP	PVC insulated and sheathed copper wire braided shield frequency converter power cable
BPVVP2	PVC insulated and sheathed copper tape wrapped shielding frequency converter power cable
BPVVPP2	PVC insulated and sheathed copper wire braided copper tape wrapped shield frequency converter power cable
BPVVP3	PVC insulated and sheathed aluminum polyester composite film wrapped and shielded frequency converter power cable
BPYJVP	XLPE insulated PVC sheathed copper wire braided shield frequency changer power cable
BPYJVP2	XLPE insulated PVC sheathed copper tape wrapped shield frequency changer power cable
BPYJVPP2	XLPE insulated PVC sheathed copper wire braided copper tape wrapped shield frequency changer power cable
BPYJVP3	XLPE insulated PVC sheathed aluminum polyester composite film wrapped and shielded frequency changer power cable
Note: Prefix ZR is added to the flame retardant type cable's code

Technical Requirement:
1.Conductor DC resitance of cable should comply with the requirement of GB/T3956-2008
2.Insulation resistance constant(20ºC,min):PVC insulation:36.7MΩ/KM
3.Cable should withstand AC voltage testing of 50HZ,3.5KV/5min,no breakdown

VFD Double shield cables for steel factory In Viet Nam-ZR-BPYJVRP 0
Technical Requirement:
1.Conductor DC resitance of cable should comply with the requirement of GB/T3956-2008
2.Insulation resistance constant(20ºC,min):PVC insulation:36.7MΩ/KM
3.Cable should withstand AC voltage testing of 50HZ,3.5KV/5min,no breakdown

VFD Double shield cables for steel factory In Viet Nam-ZR-BPYJVRP 0

Technical Requirement:
1.Conductor DC resitance of cable should comply with the requirement of GB/T3956-2008
2.Insulation resistance constant(20ºC,min):PVC insulation:36.7MΩ/KM
3.Cable should withstand AC voltage testing of 50HZ,3.5KV/5min,no breakdown
