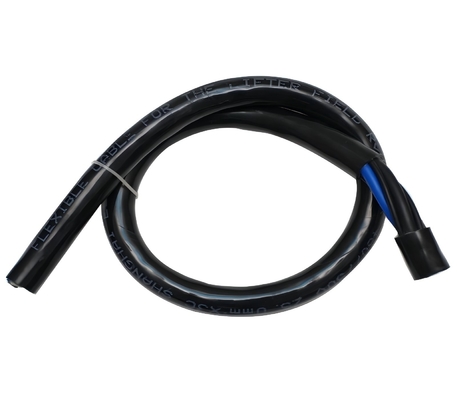

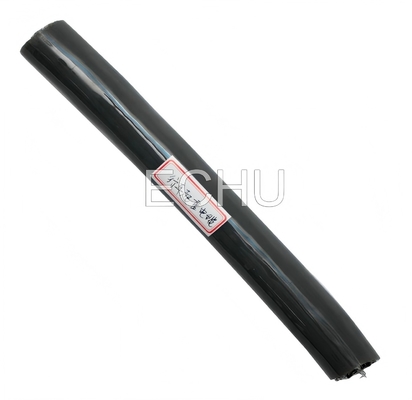

Flexible Drum-Reeling Cable, Drum Cable, Reel Cable, FLEXIBLE CABLE for PASSENGER / MATERIAL HOIST RVV-NBR-PUR 4*4

Flexible Drum-Reeling Cable, Drum Cable, Reel Cable, FLEXIBLE CABLE for PASSENGER / MATERIAL HOIST RVV-NBR-PUR 4*4

Flexible Drum-Reeling Cable, Drum Cable, Reel Cable, FLEXIBLE CABLE for PASSENGER / MATERIAL HOIST RVV-NBR-PUR 4*4

Brand Name: ECHU
Model Number: RVV-NBR-PUR
MOQ: 300m
Price: USD1.2-US3.12/M
Payment Terms: T/T, Western Union
Supply Ability: 10000KM/day
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CCC, CE
Jacket:
NBR
Insulation:
NBR
Conductor:
Copper
Voltage:
450/750v, 600/1000V
Color:
Black
Termperate:
-20-+70℃
Packaging Details:
in roll, splint boxes, pallet
Supply Ability:
10000KM/day
Product Description

Flexible Drum-Reeling Cable, Drum Cable, Reel Cable, FLEXIBLE CABLE for PASSENGER / MATERIAL HOIST RVV-NBR-PUR 4*4 0



Applications:
as connecting and control cable for lift or crane, it is also used for various kinds of electric installation in dry or wet
Indoor as well as outdoor.

Properties:
the PUR outer sheath makes the cable waterproofing, oil resistance, cool resistance, abrasion resistance, Flame resistance, anti-ultraviolet.

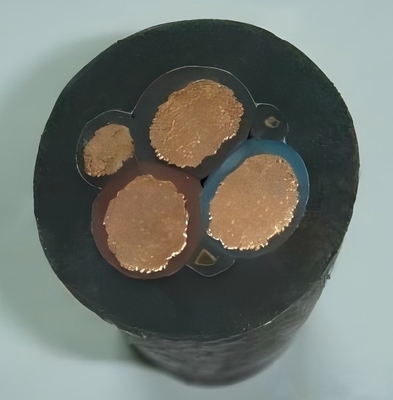

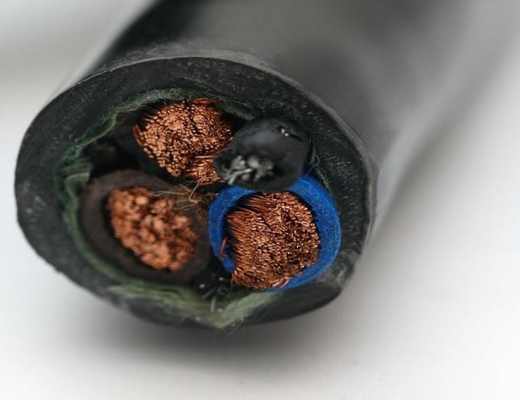

Structure:
Conductor:superfine copper strands acc. To VDE 0295, class 5
Insulation: Butadiene-acrylonitrile rubber (NBR).
Jacket: Butadiene-acrylonitrile rubber (NBR).
Colour: various colour cores with number acc. to JISC3306 or with green/yellow.
Inner liner: non-woven fabric wrapping to release impact
Outer sheath: PUR outer sheath.(waterproofing, oil resistance, cool resistance, abrasion resistance, Flame resistance, anti-ultraviolet).
Uted insulated cable rope among cores functions as tensile resistance
the outer sheath is flame retardant and self-extinguishing
(acc. to VDE 0482, part 265-2-1 resp.EN 50265-2-1 and IEC 60332-1).

Technical data
Rated voltage:450/750V
Test voltage: 2500V
Temperature range:
fixed installation: -35 to +70
flexible application: -20 to +70
Minimum bending radius: 10X outer diameter



For this type, Normally 3-4 cores, cross section normally 1.5-10mm2
