E312831 Shield UL2464 Hook Up Wire, UL2464 Electrical Cable, ECHU Cable

Name: E312831 Shield UL2464 Hook Up Wire, UL2464 Electrical Cable, ECHU Cable
Brand: Shanghai ECHU Wire and Cable Co., Ltd
SKU: UL2464
Price: 2.31 USD
Availability: InStock

Brand Name:	ECHU or OEM
Model Number:	UL2464
MOQ:	300M
Price:	USD0.313 -5.128/M
Payment Terms:	T/T, Western Union
Supply Ability:	1000KM/Week

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai, China

Certification:

CCC, UL, ISO...

Packaging Details:

wooden reel or wooden box

Supply Ability:

1000KM/Week

Product Description

Appliancaton:

As measuring, monitoring and control cable, it is suitable for the places of machine tool manufacturing, complete equipment installation engineering, power station, refrigeratory equipment, OA equipment, data processing system and heating and air condition system.

Properties:

Good insulation property, excellent chemical performance, electromagnetic wave resistance. Excellent crosstalk-resistant property.

Standards: UL 758

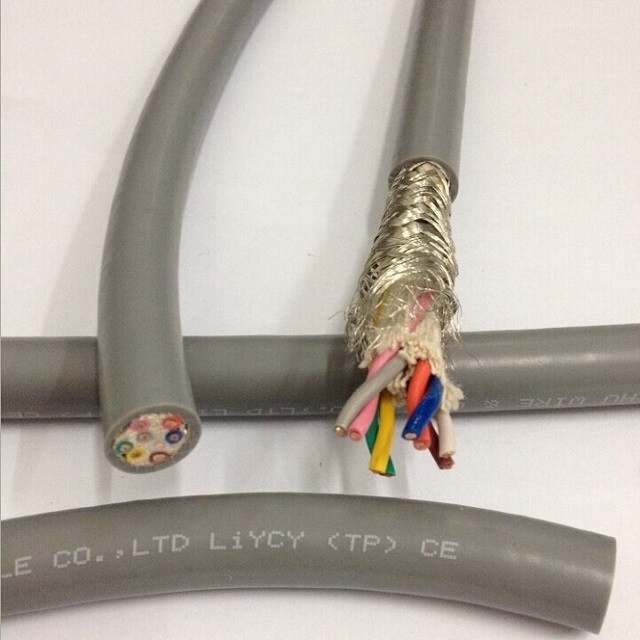

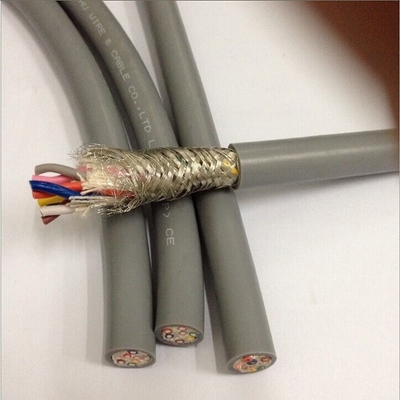

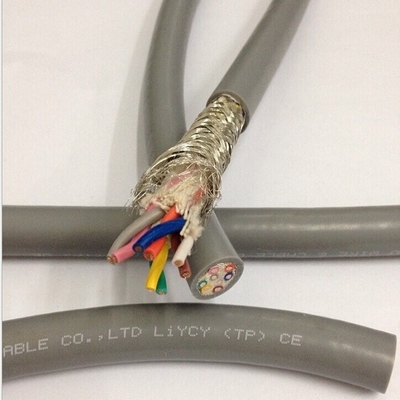

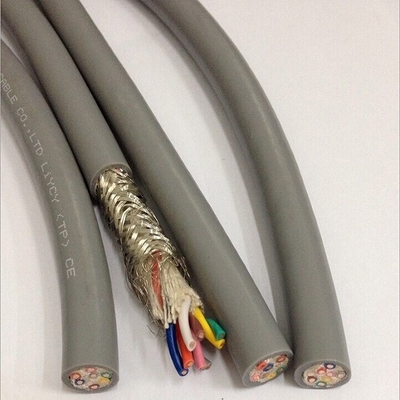

Structure:

Conductor: fine strands of tinned copper wire, exellent corrosion resistance.

Insulation: special PVC

Colour: acc. to UL 758

Inner shielding: aluminum foil

Drain wire: bare copper (optional)

Shield: bare or tinned copper shielded

Sheath: 80 heat-resistant flame-resistant PVC, pass VW-1 flame testing

Colour: green (RAL6018) orange(RAL2003) purple(RAL4001)

or refer to customers requirement.

Technical data:

Rated voltage: 300V

Test voltage: 2000V

Type	Spec.	Pairs	Con. No.	Per Cond. Dia.φ	weight /KM	External dia/least mm
UL2464	26AWG*2C	2	7	0.16	45.1	6.1
UL2464	26AWG*2C	3	7	0.16	53.8	6.5
UL2464	26AWG*2C	4	7	0.16	64.2	7.0
UL2464	26AWG*2C	5	7	0.16	75.3	7.7
UL2464	26AWG*2C	32	7	0.16	336.8	16.1
UL2464	26AWG*2C	33	7	0.16	343	16.1
UL2464	26AWG*2C	34	7	0.16	358.1	16.8
UL2464	26AWG*2C	35	7	0.16	364.3	16.8
UL2464	26AWG*2C	36	7	0.16	370.4	16.8
UL2464	25AWG*2C	2	11	0.14	48.8	6.1
UL2464	25AWG*2C	3	11	0.14	58.4	6.4
UL2464	25AWG*2C	4	11	0.14	69.9	6.9
UL2464	25AWG*2C	5	11	0.14	82	7.6
UL2464	25AWG*2C	6	11	0.14	94.6	8.2
UL2464	25AWG*2C	7	11	0.14	101.9	8.2
UL2464	25AWG*2C	31	11	0.14	364	15.9
UL2464	25AWG*2C	32	11	0.14	371.3	15.9
UL2464	25AWG*2C	33	11	0.14	378.6	15.9
UL2464	25AWG*2C	34	11	0.14	394.6	16.5
UL2464	25AWG*2C	35	11	0.14	401.8	16.5
UL2464	25AWG*2C	36	11	0.14	409.1	16.5
UL2464	24AWG*2C	2	11	0.16	61.6	7.6
UL2464	24AWG*2C	3	11	0.16	73	7.9
UL2464	24AWG*2C	4	11	0.16	88	8.7
