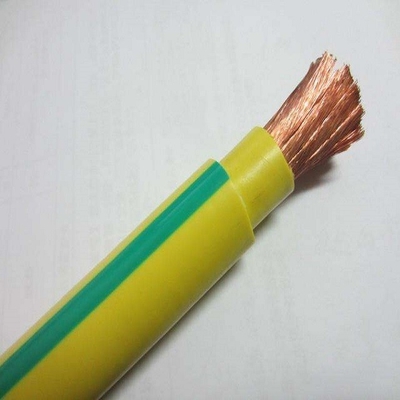

E312831 UL Certified ROHS PVC Double Insulation 1AWG 600V UL1284 105℃ Electrical Wire in Yellow/green color

Name: E312831 UL Certified ROHS PVC Double Insulation 1AWG 600V UL1284 105℃ Electrical Wire in Yellow/green color
Brand: Shanghai ECHU Wire and Cable Co., Ltd
SKU: UL1284
Price: 3.56 USD
Availability: InStock

Brand Name:	ECHU
Model Number:	UL1284
MOQ:	305M
Price:	USD1.563-USD6.326/M
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	100000km/week

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Color:

Yellow, Green, Yellow/green, Black, White.....

Insulation:

PVC

Conductor:

Stranded Copper

Voltage:

600V

Temperature:

105℃

Packaging Details:

100M/Roll or according to customer requirement

Supply Ability:

100000km/week

Product Description

E312831 UL1284 Cable's description

Product Description:

UL CERT.:E312831

UL1284: 1AWG, 2AWG, 3AWG,4AWG,5AWG,6AWG,7AWG,8AWG, 1/0AWG,2/0AWG, 3/0 AWG, 4/0AWG, 250Kcmil, 300kcmil,350kcmil, 400kcmil,450kcmil,500kcmil,500kcmil

Construction
Conductor :bare copper or tinned copper conductor Insulation: PVC
Standards
International: UL758 , UL1581
RoHS,REACH Compliant,
Technical data
Rated voltage:600V
Rated Temperature:105℃
Flame: VW-1, FT1, FT2
Oil resistance: 60 ℃ or 80 ℃ Oil

TYPE	Spec. AWG	Bare Copper		Tinned Copper		Insulation Thickness mm	Weight KG/KM
		Conductor No.	Conductor Dia.	Conductor No.	Conductor Dia.
UL1284	8	118	0.3	118	0.30	2.03	138.4
UL1284	7	147	0.3	147	0.30	2.03	161.8
UL1284	6	189	0.3	189	0.30	2.03	194.9
UL1284	5	238	0.3	238	0.30	2.03	232.8
UL1284	4	299	0.3	299	0.30	2.03	279.0
UL1284	3	378	0.3	378	0.30	2.03	337.9
UL1284	2	475	0.3	475	0.30	2.03	409.1
UL1284	1	600	0.3	600	0.30	2.03	499.6
UL1284	1/0	251	0.52	272	0.50	2.03	609.7
UL1284	2/0	317	0.52	343	0.50	2.03	749.9
UL1284	3/0	400	0.52	433	0.50	2.03	924.3
UL1284	4/0	505	0.52	546	0.50	2.03	1142.9
UL1284	250	598	0.52	647	0.50	2.41	1372.4
UL1284	300	716	0.52	774	0.50	2.41	1617.7
UL1284	350	833	0.52	901	0.50	2.41	1859.5
UL1284	400	955	0.52	1033	0.50	2.41	2110.4
UL1284	450	1073	0.52	1161	0.50	2.41	2352.2
UL1284	500	1191	0.52	1288	0.50	2.41	2593.1
UL1284	550	1313	0.52	1420	0.50	2.79	2894.1
