UL1061 Electrical Wire 80℃ 300V, ECHU UL Cable, E312831 UL Cable, 26AWG, 24AWG,22AWG, 20AWG, 18AWG, 16AWG

Name: UL1061 Electrical Wire 80℃ 300V, ECHU UL Cable, E312831 UL Cable, 26AWG, 24AWG,22AWG, 20AWG, 18AWG, 16AWG
Brand: Shanghai ECHU Wire and Cable Co., Ltd
SKU: UL1061
Price: 0.04 USD
Availability: InStock

Brand Name:	ECHU
Model Number:	UL1061
MOQ:	305M
Price:	USD0.0385-USD0.972/M
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	100000km/week

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai China

Certification:

Color:

Red, Yellow, Black, Green....

Insulation:

PVC

Conductor:

Stranded Copper

Voltage:

300V

Temperature:

80℃

Type:

UL1061

Packaging Details:

305m/Roll

Supply Ability:

100000km/week

Product Description

UL1061 SR-PVC Insulated Copper Wire Electronic Wire & Cable, LED Light

Product Description:
★ Rated temperature: 80ºC
Rated voltage: 300V
★ Reference Standard: UL Subject 758, UL1581 & CSA C22.2 NO.210.2
★ Tinned or bare, stranded or solid copper conductor,30-16 AWG
★ Colour-coded lead free SR-PVC insulation
★ Uniform insulation thickness to ensure easy stripping and cutting
★ Passes UL VW-1 & CSA FT1 vertical flame test
★ Application: For internal wiring of electronic and electrical equipment,
protection is required where mechanical damage is possible

This type of cable have the advantage of the cable have smaller outside diameter, can meet higher using requirement.

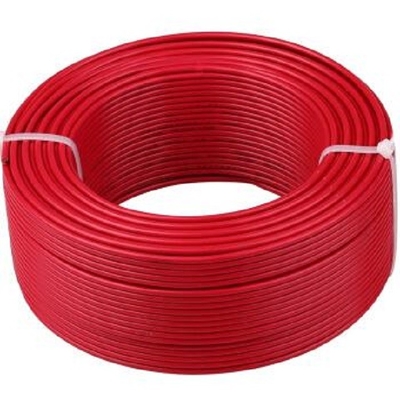

UL1061 Electrical Wire 80℃ 300V, ECHU UL Cable, E312831 UL Cable, 26AWG, 24AWG,22AWG, 20AWG, 18AWG, 16AWG 0

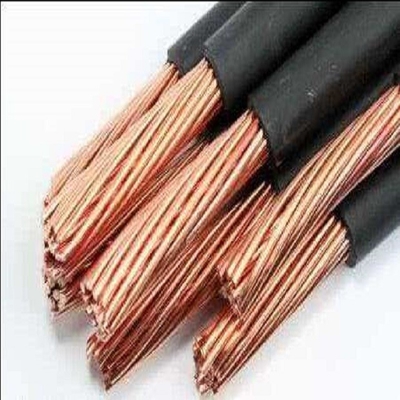

UL1061 Electrical Wire 80℃ 300V, ECHU UL Cable, E312831 UL Cable, 26AWG, 24AWG,22AWG, 20AWG, 18AWG, 16AWG 1

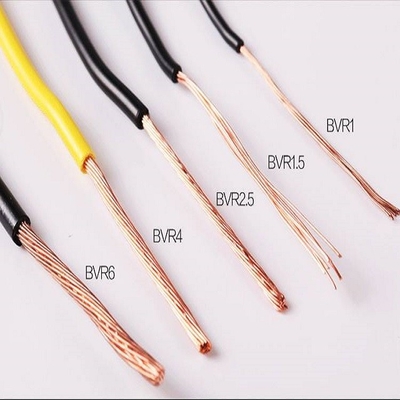

UL1061 Electrical Wire 80℃ 300V, ECHU UL Cable, E312831 UL Cable, 26AWG, 24AWG,22AWG, 20AWG, 18AWG, 16AWG 2

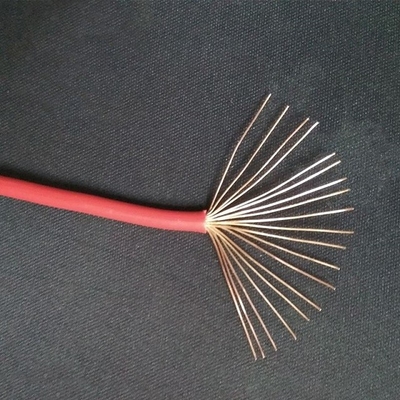

UL1061 Electrical Wire 80℃ 300V, ECHU UL Cable, E312831 UL Cable, 26AWG, 24AWG,22AWG, 20AWG, 18AWG, 16AWG 3

Conductor			Insulation		Maximum Resistance at 20ºC Ω/km
AWG	No./mm	Dia. mm	Nom. Thick. mm	Nom.Dia. mm	Maximum Resistance at 20ºC Ω/km
30	7/0.1	0.30	0.26	0.82	354
28	7/0.127	0.38	0.26	0.90	223
26	7/0.16	0.48	0.26	1.00	139
24	11/0.16	0.61	0.27	1.15	88.9
22	17/0.16	0.76	0.26	1.28	57.5
20	26/0.16	0.94	0.26	1.46	34.6
18	41/0.16	1.18	0.26	1.70	23.3
16	26/0.254	1.49	0.26	2.02	15.1
