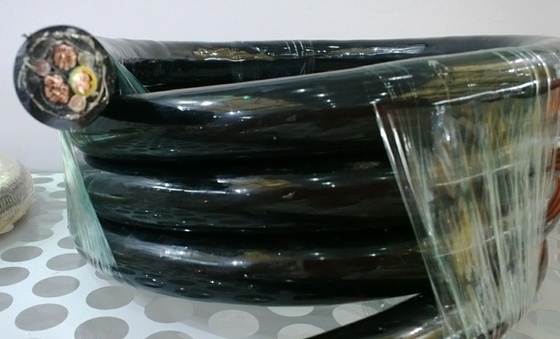

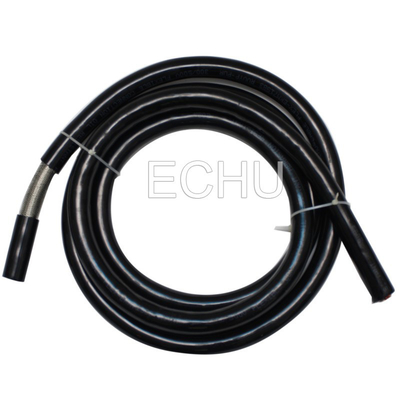

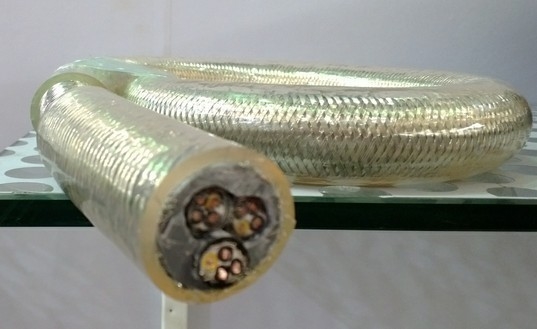

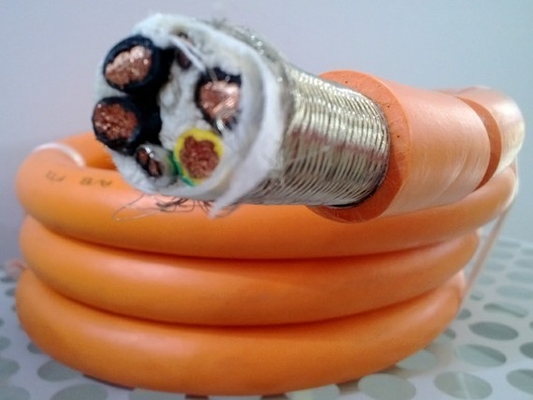

Flexible Shield Power Chain Cable ECHU Cable

Flexible Shield Power Chain Cable ECHU Cable

Flexible Shield Power Chain Cable ECHU Cable

Brand Name: ECHU
Model Number: EKM71373, EKM71573
MOQ: 300M
Price: USD0.513-USD3.61/M
Payment Terms: Western Union, T/T
Supply Ability: 1000000M/Day
Detail Information
Product Description
Detail Information
Place of Origin:
Shanghai, China
Certification:
CE
Voltage:
300/500V; 450/750V
Insulation:
Special PVC
Jacket:
Special PVC
Packaging Details:
wooden reel/wooden box
Supply Ability:
1000000M/Day
Product Description

Super Flexible Power Chain Cable with Long Bending Life, Robot Cable
(EKM71100, EKM71573, EKM71900)
Application:
It is suitable for dry or wet rooms and installation without strong stress or free continuous reciprocating movement. It is special suitable for the working places of woodworking machine, machine tool equipment, logistics conveyer system, crane and other related equipments.
Properties:
Waterproofing; Oil resistance; Cool resistance; Abrasion resistance; Flame resistance; Anti-ultraviolet.
Bending for life: Above 5, 000, 000 times.
Structure:
Conductor: Fine strands of oxygen-free copper wire,
Acc. To VDE 0295 CLASS 6
Insulation: Special PVC
Sheath: Special PVC, black(RAL9005) or Grey (RAL7001)
Related voltage: >/= 300/500V, <0.5mm: 300/300V
Test voltage: 2500V
Temperature range: Fixed Installation: -30 degree to + 90 degree
Flexing Installation: -5 degree to +90 degree
The minimum bending radius: Fixed: 5xd
Moved: When travel<10m, bending radius of 7.5xd
When travel>/=10m. Bending radius of 10xd


TypeSpecificationConductor (Number/Dia)
EKM71373O.1*2C13/0.1CU+2/0.1steel
EKM71373O.1*3C13/0.1CU+2/0.1steel
EKM71373O.1*4C13/0.1CU+2/0.1steel
EKM71373O.1*5C13/0.1CU+2/0.1steel
EKM71373O.1*6C13/0.1CU+2/0.1steel
EKM71373O.1*7C13/0.1CU+2/0.1steel
EKM71373O.1*8C13/0.1CU+2/0.1steel
EKM71373O.1*9C13/0.1CU+2/0.1steel
EKM71373O.1*1OC13/0.1CU+2/0.1steel
EKM71373O.1*11C13/0.1CU+2/0.1steel
EKM71373O.1*12C13/0.1CU+2/0.1steel
EKM71373O.1*13C13/0.1CU+2/0.1steel
EKM71373O.1*14C13/0.1CU+2/0.1steel
EKM71373O.1*15C13/0.1CU+2/0.1steel
EKM71373O.1*16C13/0.1CU+2/0.1steel
EKM71373O.1*17C13/0.1CU+2/0.1steel
EKM71373O.1*18C13/0.1CU+2/0.1steel
EKM71373O.1*19C13/0.1CU+2/0.1steel
EKM71373O.1*2OC13/0.1CU+2/0.1steel
EKM71373O.1*21C13/0.1CU+2/0.1steel
EKM71373O.1*22C13/0.1CU+2/0.1steel
EKM71373O.1*23C13/0.1CU+2/0.1steel
EKM71373O.1*24C13/0.1CU+2/0.1steel
EKM71373O.1*25C13/0.1CU+2/0.1steel
EKM71373O.1*26C13/0.1CU+2/0.1steel
EKM71373O.1*27C13/0.1CU+2/0.1steel
EKM71373O.1*28C13/0.1CU+2/0.1steel
EKM71373O.1*29C13/0.1CU+2/0.1steel
EKM71373O.1*3OC13/0.1CU+2/0.1steel
　　　
EKM71373O.14*2C18/0.1CU+2/0.1steel
EKM71373O.14*3C18/0.1CU+2/0.1steel
EKM71373O.14*4C18/0.1CU+2/0.1steel
EKM71373O.14*5C18/0.1CU+2/0.1steel
EKM71373O.14*6C18/0.1CU+2/0.1steel
EKM71373O.14*7C18/0.1CU+2/0.1steel
EKM71373O.14*8C18/0.1CU+2/0.1steel
EKM71373O.14*9C18/0.1CU+2/0.1steel
EKM71373O.14*1OC18/0.1CU+2/0.1steel
EKM71373O.14*11C18/0.1CU+2/0.1steel
EKM71373O.14*12C18/0.1CU+2/0.1steel
EKM71373O.14*13C18/0.1CU+2/0.1steel
EKM71373O.14*14C18/0.1CU+2/0.1steel
EKM71373O.14*15C18/0.1CU+2/0.1steel
EKM71373O.14*16C18/0.1CU+2/0.1steel
EKM71373O.14*17C18/0.1CU+2/0.1steel
EKM71373O.14*18C18/0.1CU+2/0.1steel
EKM71373O.14*19C18/0.1CU+2/0.1steel
EKM71373O.14*2OC18/0.1CU+2/0.1steel
EKM71373O.14*21C18/0.1CU+2/0.1steel
EKM71373O.14*22C18/0.1CU+2/0.1steel
EKM71373O.14*23C18/0.1CU+2/0.1steel
EKM71373O.14*24C18/0.1CU+2/0.1steel
EKM71373O.14*25C18/0.1CU+2/0.1steel
EKM71373O.14*26C18/0.1CU+2/0.1steel
EKM71373O.14*27C18/0.1CU+2/0.1steel
EKM71373O.14*28C18/0.1CU+2/0.1steel
EKM71373O.14*29C18/0.1CU+2/0.1steel
EKM71373O.14*3OC18/0.1CU+2/0.1steel
