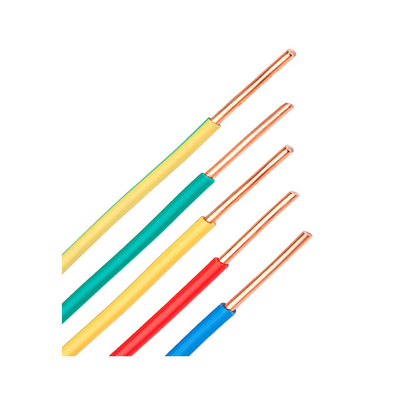

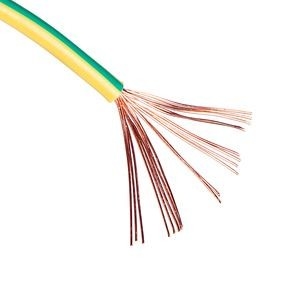

E312831 ECHU Cable UL1283 Electrical Cables 6AWG 105C 600V with Yellow/Green Color

Name: E312831 ECHU Cable UL1283 Electrical Cables 6AWG 105C 600V with Yellow/Green Color
Brand: Shanghai ECHU Wire and Cable Co., Ltd
SKU: EKF50202
Price: 0.91 USD
Availability: InStock

Brand Name:	ECHU
Model Number:	EKF50202
MOQ:	305M
Price:	USD0.911-USD1.638/M
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	100000km/week

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai China

Certification:

Color:

Yellow, Green, Yellow/green, Black, White.....

Packaging Details:

100M/Roll or according to customer requirement

Supply Ability:

100000km/week

Product Description

E312831 UL Certified ROHS PVC Double Insulation 6AWG 600V UL1283 105℃ Electrical Wire in Black color

Production description:

UL CERT.:E312831Single Conductor Single Core Flexible Wire UL1283 PVC Insulated 8 AWG,7AWG,6AWG,5AWG,4AWG,3AWG,2AWG

Construction
Conductor :bare copper or tinned copper conductor
Insulation: PVC
Standards
International: UL758 , UL1581
RoHS,REACH Compliant,
Technical data
Rated voltage:600V
Rated Temperature:105℃
Flame: VW-1, FT1, FT2
Oil resistance: 60 ℃ or 80 ℃ Oil
Voltage withstand test:AC 2.5kV/1min

E312831 ECHU Cable UL1283 Electrical Cables 6AWG 105C 600V with Yellow/Green Color 0

E312831 ECHU Cable UL1283 Electrical Cables 6AWG 105C 600V with Yellow/Green Color 1

E312831 ECHU Cable UL1283 Electrical Cables 6AWG 105C 600V with Yellow/Green Color 2

E312831 ECHU Cable UL1283 Electrical Cables 6AWG 105C 600V with Yellow/Green Color 3

E312831 ECHU Cable UL1283 Electrical Cables 6AWG 105C 600V with Yellow/Green Color 4

TYPE	Spec. AWG	Bare Copper		Tinned Copper		Insulation Thickness mm	Weight KG/KM
		Conductor No.	Conductor Dia.	Conductor No.	Conductor Dia.
UL1283	8	118	0.3	118	0.30	1.52	119.5
UL1283	7	147	0.3	147	0.30	1.52	141.8
UL1283	6	189	0.3	189	0.30	1.52	173.4
UL1283	5	238	0.3	238	0.30	1.52	209.7
UL1283	4	299	0.3	299	0.30	1.52	254.3
UL1283	3	378	0.3	378	0.30	1.52	311.2
UL1283	2	475	0.3	475	0.30	1.52	380.2
