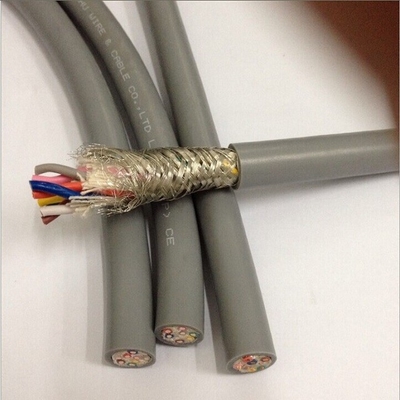

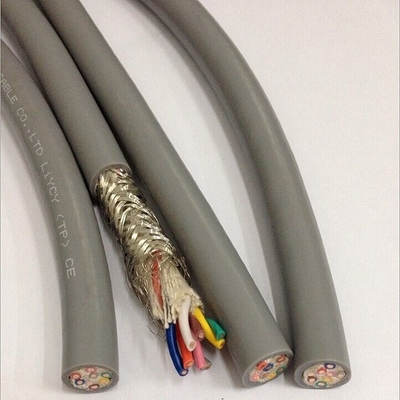

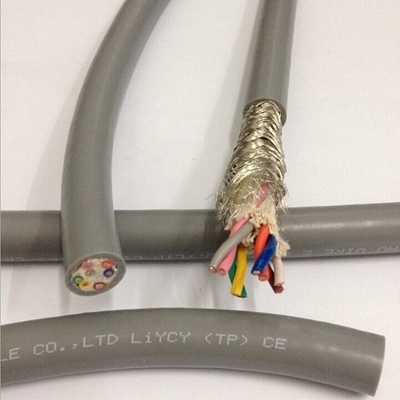

LIYCY(B) TP Shield Data Cable, ECHU Electrical Cable

LIYCY(B) TP Shield Data Cable, ECHU Electrical Cable

LIYCY(B) TP Shield Data Cable, ECHU Electrical Cable

Brand Name: ECHU
MOQ: 300M
Price: negotiatie
Payment Terms: T/T, Western Union
Supply Ability: 100000km/week
Detail Information
Product Description
Detail Information
Place of Origin:
Shanghai, China
Certification:
CE
Packaging Details:
wooden reel/wooden box
Supply Ability:
100000km/week
Product Description



LIYCY(B) TP PVC Data Cable



Product structure:

Conductor: Bare stranded copper, according to DIN VDE0812

Insulation : PVC, Y12, according to DIN VDE0207, Part 4

Color Code: According to DIN VDE47100 color marking cores

Cores structure: laying

Jacket Material: PVC, YM1 according to DIN VDE 0207 Part 5

Jacket Color: Grey (RAL7032), or other colors optional



Technical data:



Working voltage: <0.25 sqmm  350V

              >0.25 sqmm  500V

Testing voltage:  <0.25 sqmm  800V

              >0.25 sqmm  1200V

Minimum bending radius:

Fix installation: 5XD

Movable installation: 10XD



Working temperature

Fix installation: -30C to +70C

Movable installation: -5C to +70C



Fire resistance: Meet with IE60332-1-2+EN60332-1-2

Oil resistance: engine oil, gear oil, lubricant oil etc.



Characteristic and Compliance:

Flexibility, small outside diameter, small bending radius



Typical applications:

For electronic, connected to the control panel and the equipment, low voltage switchboard equipment and communication technology
