SUPER FLEXIBLE TRAVELING CONTROL CABLE

Brand Name:	ECHU or OEM
Model Number:	EKM79000
MOQ:	300m
Price:	USD0.203-18.352/M
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	10000km/week

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai, China

Certification:

ISO, CCC

Packaging Details:

Wooden reel

Supply Ability:

10000km/week

Product Description

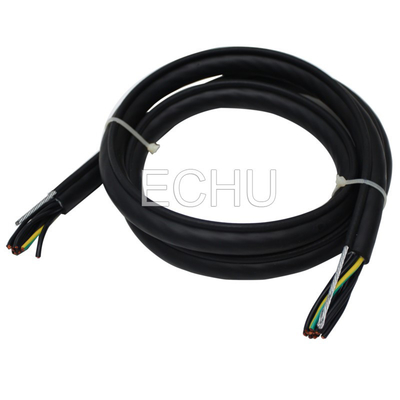

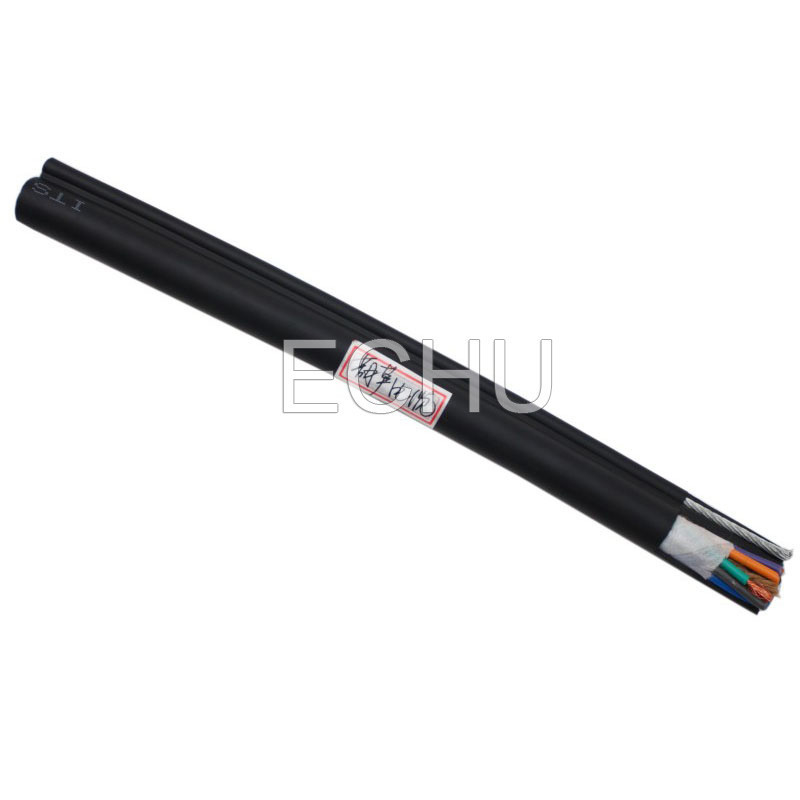

SUPER FLEXIBLE TRAVELING CONTROL CABLE

Applications:

It is the control cable being used for cranes and other appliances in dry or wet environment (indoor). For its special flexibility, it also can be used for non-continous installation or fixation, but can not work as elevator cables. Just insulated cable rope among cores functions as tensile resistance, There is non-woven fabric to release impact between cores and sheath.

Properties:

In the condition of ultra-height, we recommend to use cable with 2 steelswhose broken pulling force reaches 104.KN and the height 150m.

For the adoption of modified PVC sheath, the product has an excellent properties and safety service.

Structure:

Conductor: Fine strands of oxygen-free copper wire.

acc. to VDE0295, class5

Color: varous colour cores with number acc. to JISC3306

black with white number and green/yellow acc. to IEC227

Inner liner: non-woven fabric wrapping to release impact

Steel rope: One or two self-supporting steel rope is used to carry tensile force in working.

Outer sheath: special PVC, bkack (RAL9005)

Technical Data:

Rated voltage: ≤1.5mm 300/500v >1.5mm: 450/750v

Test voltage: ≤1.5mm 300/500v >1.5mm: 3000v

Temperature range: -15°c to +70°c

Bending radius: 20 x outer diameter

Type	Cores	Specification	Steel No.	Steel Dia mm	Weight KG/KM	O.D. MM
RVV(2G)	2C	1.5	2	1.3	188	17.4
RVV(2G)	3C	1.5	2	1.3	206	17.9
RVV(2G)	4C	1.5	2	1.3	237	18.8
RVV(2G)	5C	1.5	2	1.3	273	19.8
RVV(2G)	6C	1.5	2	1.3	312	20.9
RVV(2G)	7C	1.5	2	2.5	400	26.3
RVV(2G)	8C	1.5	2	2.5	448	27.7
RVV(2G)	9C	1.5	2	2.5	497	28.7
RVV(2G)	10C	1.5	2	2.5	531	28.7
RVV(2G)	11C	1.5	2	2.5	569	29.3
RVV(2G)	12C	1.5	2	2.5	576	29.3
RVV(2G)	13C	1.5	2	2.5	627	30.2
RVV(2G)	14C	1.5	2	2.5	633	30.2
RVV(2G)	15C	1.5	2	2.5	690	31.2
RVV(2G)	16C	1.5	2	2.5	696	31.2
RVV(2G)	17C	1.5	2	2.5	757	32.2
RVV(2G)	18C	1.5	2	2.5	763	32.2
RVV(2G)	19C	1.5	2	2.5	782	32.2
RVV(2G)	20C	1.5	2	2.5	810	32.7
RVV(2G)	21C	1.5	2	2.5	851	33.2
RVV(2G)	22C	1.5	2	2.5	965	34.6
