ROUND CRANE CABLES WITH TWO STEELS, ECHU FLAT CABLE

Name: ROUND CRANE CABLES WITH TWO STEELS, ECHU FLAT CABLE
Brand: Shanghai ECHU Wire and Cable Co., Ltd
SKU: EKM79000
Price: 9.21 USD
Availability: InStock

Brand Name:	ECHU or OEM
Model Number:	EKM79000
MOQ:	300m
Price:	USD0.206-18.393/M
Payment Terms:	T/T, Western Union
Supply Ability:	10000km/week

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai, China

Certification:

ISO, CCC

Packaging Details:

Wooden reel

Supply Ability:

10000km/week

Product Description

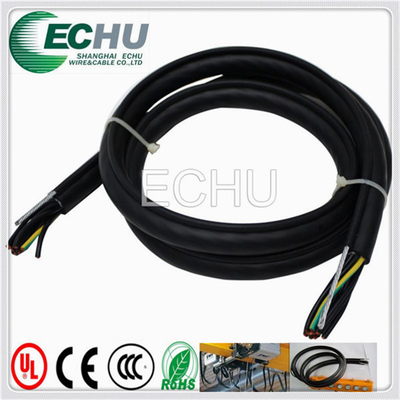

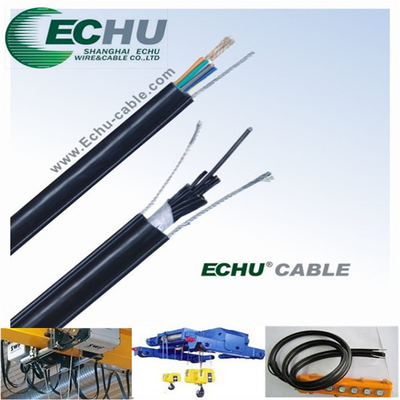

ROUND CRANE CABLES WITH TWO STEELS

Applications:
It is the control cable being used for cranes and other appliances in dry or wet environment( indoor). For its special flexibility, it also can be used for non-continuous installation or fixation, but cannot work as elevator cable. juted insulated cable rope among cores functions as tensile resistance, there is non-woven fabric to release impact between cores and sheath.

Properties:

In the condition of ultra-height, we recommend to use cable with 2 steels whose broken pulling force reaches 10.4GN and the height 150m. For the adoption of modified PVC sheath,the product has an excellent properties and safty service.

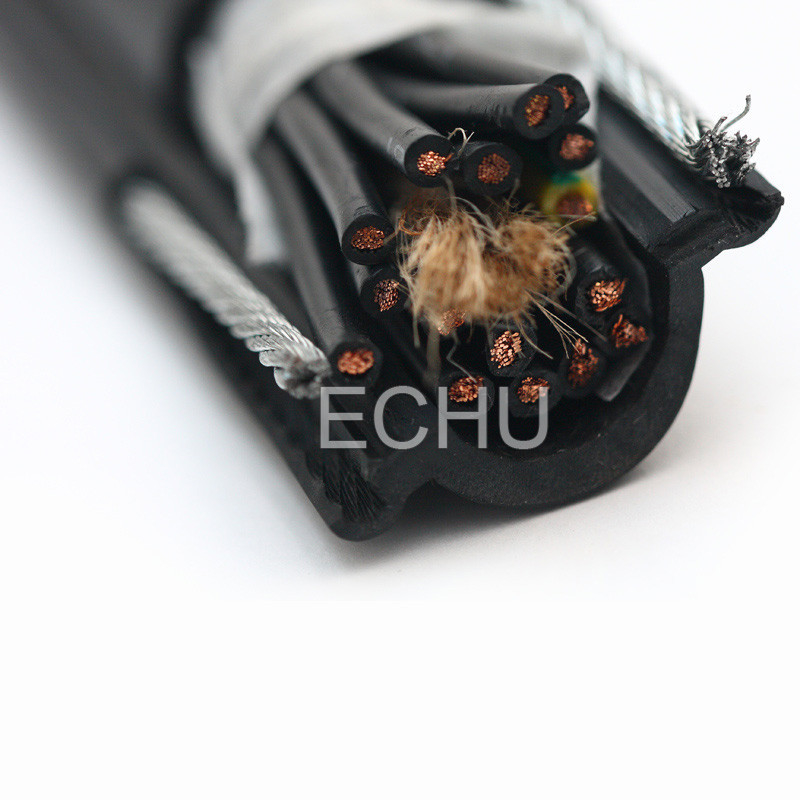

Structure:

Conductor: Fine strands of oxygen-free copper wire. According to VDE0295 CLASS 5.

Color: Various color cores with number Acc.to JISC3306

Black wit white number and green/yellow acc.to IEC227

Inner liner: non-woven fabric wrapping to release impact

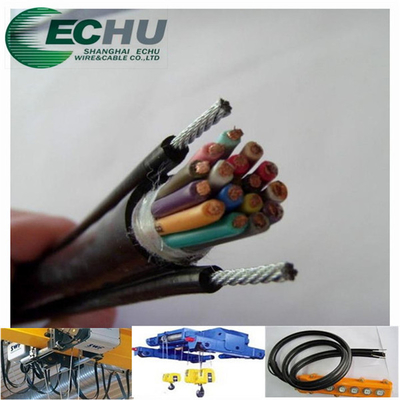

Steel rope: One or two self-supporting steel rope is used to carry tensile force in working.

Outer sheath: special PVC, black (RAL9005)

Technical data:

Rated voltage: <and =1.5mm 300/500v > 1.5mm:450V/750V

Test voltage: <and = 1.5mm 2500V, >1.5mm :3000V

Temp range: -15Cto +70C

bending radius: : 20xouter diameter.
