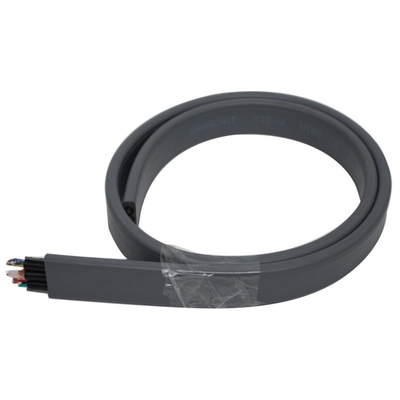

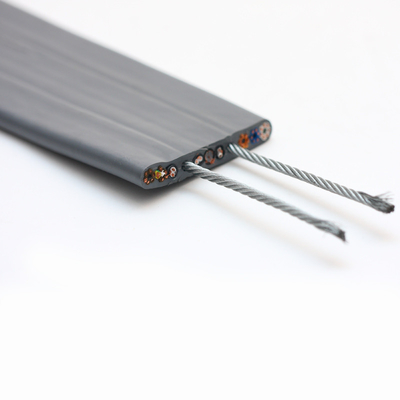

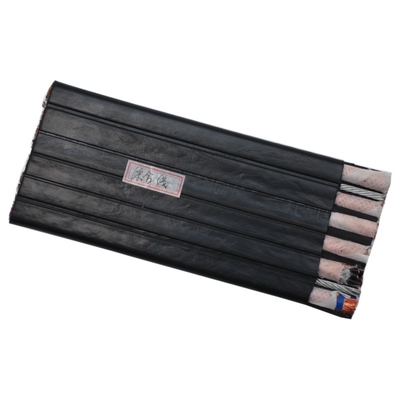

Flat Travel Elevator Cable with CCTV Cable ECHU Elevator Cable TVVBG-TV

Name: Flat Travel Elevator Cable with CCTV Cable ECHU Elevator Cable TVVBG-TV
Brand: Shanghai ECHU Wire and Cable Co., Ltd
SKU: TVVBG-TV
Availability: InStock

Brand Name:	ECHU or OEM
Model Number:	TVVBG-TV
MOQ:	300Meters
Price:	Depends on qualtity
Payment Terms:	T/T,Western Union, L/C
Supply Ability:	100000km/week

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai, China

Certification:

CCC, CE

Type:

TVVBG-TV

Insulation:

PVC

Jacket:

PVC

Conductor:

Stranded Copper

Packaging Details:

Splint Reels

Supply Ability:

100000km/week

Product Description

Elevator Video Cable

Flat Travel Cable with Video Cable CCTV Cable for Elevator

PRODUCT STANDARD
GB5023.6-1997
PRODUCTION APPLICATION
Elevator suspension flat travel cable for internal and panoramic elevators.
RATED VOLTAGE
This product is fit for the rated 300/500V and below.
WORK TEMPERATURE:
Used under the normal conditions, the conductor' s temperature is at 70. The cable is available at -15 to 40 environment.
OTHER ATTENTIONS
Without steelFree suspension length not exceed 80 meters, and the lift speed must not exceed 4m/s.
With steelFree suspension length exceed 80 meters, and the lift speed must not exceed 10m/s.

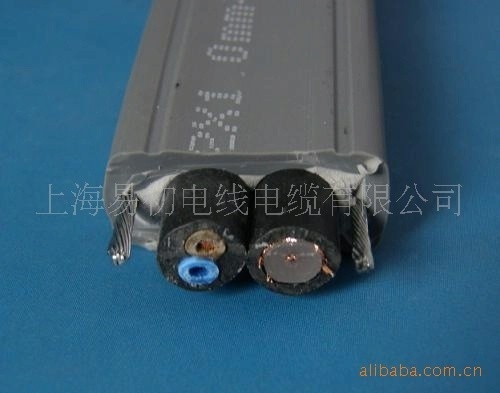

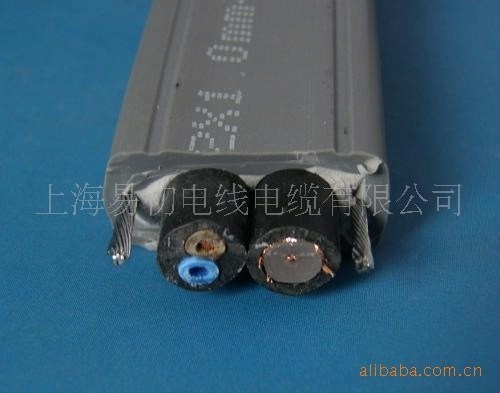

Flat traveling cable with 75ohm cable

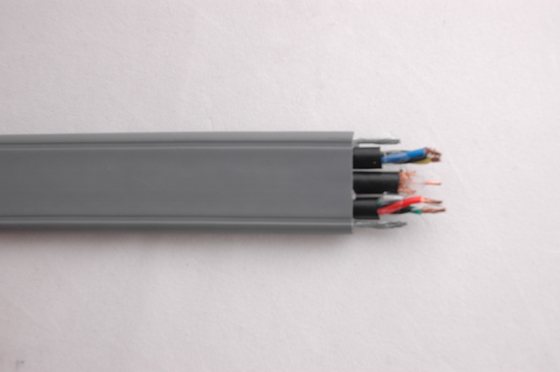

Flat traveling cable with video cable

Type	Specification	Outside Diameter(mm)
TVVB2G	75-5+2X1.0	22.9±1.0×9.3±0.5
TVVB2G	75-5+2X0.75	22.9±1.0×9.3±0.5
TVVB1G	75-3+2X0.75	17.0±1.0×6.5±0.5
TVVB2G	SYV75-5-2	13.3±1.0×7.1±0.5
SYV2G	75-5-2	8.1±0.5×3.7±0.2

We also can design according to your requirement

Flat Travel Elevator Cable with CCTV Cable ECHU Elevator Cable TVVBG-TV 0
