Flat PVC Travel Cable H07VVH6-F, ECHU Flexible Cable

Brand Name:	ECHU
Model Number:	EKM787 00
MOQ:	100M
Price:	depending on detailed sizes
Payment Terms:	TT,Western Union
Supply Ability:	100000km/week

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai, China

Certification:

CCC

H07VVH6-F:

16Cx1.5SQMM

Packaging Details:

wooden reel

Supply Ability:

100000km/week

Product Description

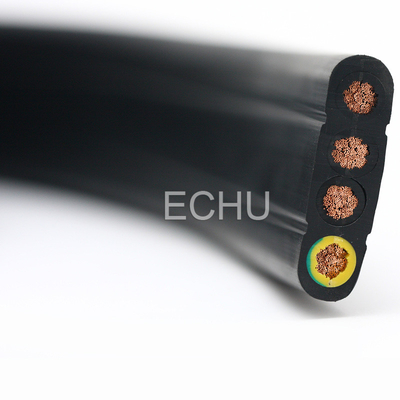

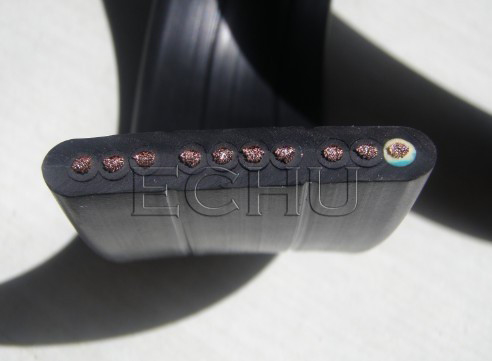

Flat PVC Travel Cable

As connecting and control cable for cranes and conveyers. It is suitable for the places of railway stations, crane and other rela
It is suitable as a control and connection cable for cranes and conveyers on building sites, container goods railway stations and dockyards where operating conditions are rough.
Structure:
Conductor: Superfine copper strands acc. To VDE0295, CLASS 5
Insulation: Mixed PVC, resistant to oil, flame resistance and self-extinguishing
Colour: Acc. To 227IEC(brown, blue, black, green/yellow)
5cores or more with black number with white digital coding
Sheath: Flexible PVC; Resistant to oil, flame retardant and self-extinguishing;
Colour: Black(RAL9005)or grey (RAL7001)
Standard: Acc. To VDE 0482, part 265-2-1 resp. EN 50265-2-1 and IEC 60332-1.
Technical data:
Rated voltage: ≤ 1.5mm 300/500V >1.5mm: 450/750V
Test voltage: ≤ 1.5mm 2500V >1.5mm: 3000V
Mimimum bending radius: 0.3m<;L<;0.6m
Burning vertically test: GB/T1 8380.1-2001, IEC 60332-1: 1993 test
Passedstandard: GB5023.6, IEC60227-6, EN 50214.
Used under the normal conditions. The temperature of conductor is lower than 70° C
Temperature range: -15° C to +40° C
Cables are reommended for installations where the suspended length doesn't exceed 80m; And the speed of travel does not exceed 4m/s
If it is more than this, with steel

Type	Cores	Cross section	Width (mm)	Thickness (mm)	Weight(kg/km)	Shape
H07VVH6-F	4	4	21.9±1.5	7.3±0.5	360.4	Parallel
H07VVH6-F	5	4	27.3±1.5	7.3±0.5	447.3	Parallel
H07VVH6-F	5	4	27.3±1.5	7.3±0.5	447.3	Parallel
H07VVH6-F	6	4	31.7±2.0	7.3±0.5	523.8	Parallel
H07VVH6-F	7	4	36.1±2.0	7.3±0.5	600.3	Parallel
H07VVH6-F	8	4	40.5±2.0	7.3±0.5	676.8	Parallel
H07VVH6-F	9	4	44.9±2.0	7.3±0.5	753.3	Parallel
H07VVH6-F	10	4	49.3±2.0	7.3±0.5	829.8	Parallel
H07VVH6-F	11	4	53.7±2.0	7.3±0.5	906.3	Parallel
H07VVH6-F	12	4	58.1±2.0	7.3±0.5	982.8	Parallel
H07VVH6-F	13	4	62.5±2.5	7.3±0.5	1059.3	Parallel
H07VVH6-F	14	4	67.9±2.5	7.3±0.5	1146.2	Parallel
H07VVH6-F	15	4	72.3±2.5	7.3±0.5	1222.7	Parallel
H07VVH6-F	16	4	76.7±2.5	7.3±0.5	1299.2	Parallel
H07VVH6-F	17	4	81.1±2.5	7.3±0.5	1375.7	Parallel
H07VVH6-F	18	4	86.5±2.5	7.3±0.5	1462.5	Parallel
H07VVH6-F	19	4	90.9±2.5	7.3±0.5	1539	Parallel
H07VVH6-F	24	4	60.1±2.5	16.1±1.0	1866.9	Intertwist
H07VVH6-F	30	4	78.8±2.5	14.8±1.0	2361.4	Intertwist
H07VVH6-F	36	4	86.7±2.5	16.1±1.0	2851.5	Intertwist
H07VVH6-F	2	4	17.6±1.0	7.3±0.5	266	Parallel (With Steel wire)
H07VVH6-F	3	4	22.0±1.5	7.3±0.5	342.5	Parallel (With Steel wire)
H07VVH6-F	4	4	27.4±1.5	7.3±0.5	429.3	Parallel (With Steel wire)
H07VVH6-F	5	4	32.8±1.5	7.3±0.5	516.2	Parallel (With Steel wire)
H07VVH6-F	6	4	36.2±2.0	7.3±0.5	582.3	Parallel (With Steel wire)
H07VVH6-F	7	4	41.6±2.0	7.3±0.5	669.2	Parallel (With Steel wire)
H07VVH6-F	8	4	46.0±2.0	7.3±0.5	745.7	Parallel (With Steel wire)
H07VVH6-F	9	4	50.4±2.0	7.3±0.5	822.2	Parallel (With Steel wire)
H07VVH6-F	10	4	54.8±2.0	7.3±0.5	898.7	Parallel (With Steel wire)
H07VVH6-F	11	4	59.2±2.0	7.3±0.5	975.2	Parallel (With Steel wire)
H07VVH6-F	12	4	63.6±2.5	7.3±0.5	1051.7	Parallel (With Steel wire)
H07VVH6-F	13	4	68.7±2.5	7.3±0.5	1138.2	Parallel (With Steel wire)
H07VVH6-F	14	4	74.1±2.5	7.3±0.5	1225.1	Parallel (With Steel wire)
H07VVH6-F	15	4	78.5±2.5	7.3±0.5	1301.6	Parallel (With Steel wire)
H07VVH6-F	16	4	82.9±2.5	7.3±0.5	1378.1	Parallel (With Steel wire)
H07VVH6-F	17	4	87.3±2.5	7.3±0.5	1454.6	Parallel (With Steel wire)
H07VVH6-F	18	4	92.7±2.5	7.3±0.5	1541.4	Parallel (With Steel wire)
H07VVH6-F	24	4	69.1±2.5	16.1±1.0	2106.8	Intertwist(with steel wire)
H07VVH6-F	30	4	87.0±2.5	14.8±1.0	2567.8	Intertwist(with steel wire)

H07VVH6-F	2	6	13.5±1.0	8.0±0.5	254.6	Parallel
H07VVH6-F	3	6	18.6±1.0	8.0±0.5	358.2	Parallel
H07VVH6-F	4	6	26.9±1.5	8.0±0.5	498.1	Parallel
H07VVH6-F	5	6	32.0±2.0	8.0±0.5	601.7	Parallel
H07VVH6-F	6	6	38.7±2.0	8.0±0.5	723.4	Parallel
H07VVH6-F	7	6	42.2±2.0	8.0±0.5	809	Parallel
H07VVH6-F	8	6	48.9±2.0	8.0±0.5	930.7	Parallel
H07VVH6-F	9	6	54.0±2.0	8.0±0.5	1034.3	Parallel
H07VVH6-F	10	6	59.1±2.0	8.0±0.5	1138	Parallel
H07VVH6-F	11	6	62.6±2.5	8.0±0.5	1223.5	Parallel
H07VVH6-F	12	6	67.7±2.5	8.0±0.5	1327.1	Parallel
H07VVH6-F	13	6	72.8±2.5	8.0±0.5	1430.7	Parallel
H07VVH6-F	14	6	79.5±2.5	8.0±0.5	1552.5	Parallel
H07VVH6-F	15	6	84.6±2.5	8.0±0.5	1656.1	Parallel
H07VVH6-F	16	6	89.7±2.5	8.0±0.5	1759.7	Parallel
H07VVH6-F	24	6	68.7±2.5	18.2±1.0	2534.4	Intertwist
H07VVH6-F	30	6	90.1±2.5	16.7±1.0	3205.7	Intertwist
H07VVH6-F	2	6	22.5±1.5	8.0±0.5	411.4	Parallel(with steel wire)
H07VVH6-F	3	6	27.6±1.5	8.0±0.5	515	Parallel(with steel wire)
H07VVH6-F	4	6	35.9±2.0	8.0±0.5	654.9	Parallel(with steel wire)
H07VVH6-F	5	6	41.0±2.5	8.0±0.5	758.5	Parallel(with steel wire)
H07VVH6-F	6	6	46.1±2.5	8.0±0.5	862.1	Parallel(with steel wire)
H07VVH6-F	7	6	51.2±2.5	8.0±0.5	965.8	Parallel(with steel wire)
H07VVH6-F	8	6	57.9±2.5	8.0±0.5	1087.5	Parallel(with steel wire)
H07VVH6-F	9	6	63.0±2.5	8.0±0.5	1191.1	Parallel(with steel wire)
H07VVH6-F	10	6	68.1±2.5	8.0±0.5	1294.8	Parallel(with steel wire)
H07VVH6-F	11	6	71.6±2.5	8.0±0.5	1380.3	Parallel(with steel wire)
H07VVH6-F	12	6	76.7±2.5	8.0±0.5	1483.9	Parallel(with steel wire)
H07VVH6-F	13	6	81.8±2.5	8.0±0.5	1587.6	Parallel(with steel wire)
H07VVH6-F	14	6	88.5±2.5	8.0±0.5	1709.3	Parallel(with steel wire)
H07VVH6-F	24	6	78.7±2.5	18.2±1.0	2846.8	Intertwist(with steel wire)
H07VVH6-F	2	10	17.1±1.0	9.7±0.5	388	Parallel
H07VVH6-F	3	10	24.0±1.5	9.7±0.5	554.4	Parallel
H07VVH6-F	4	10	34.5±2.0	9.7±0.5	770.2	Parallel
H07VVH6-F	5	10	41.4±2.0	9.7±0.5	936.5	Parallel
H07VVH6-F	6	10	50.1±2.0	9.7±0.5	1127.6	Parallel
H07VVH6-F	7	10	55.2±2.0	9.7±0.5	1269.3	Parallel
H07VVH6-F	8	10	63.9±2.5	9.7±0.5	1460.4	Parallel
H07VVH6-F	9	10	70.8±2.5	9.7±0.5	1626.8	Parallel
H07VVH6-F	10	10	77.7±2.5	9.7±0.5	1793.1	Parallel
H07VVH6-F	11	10	82.8±2.5	9.7±0.5	1934.8	Parallel
H07VVH6-F	12	10	89.7±2.5	9.7±0.5	2101.2	Parallel
H07VVH6-F	2	10	26.1±1.5	9.7±0.5	566.5	Parallel(with steel wire)
H07VVH6-F	3	10	33.0±2.0	9.7±0.5	732.9	Parallel(with steel wire)
H07VVH6-F	4	10	43.5±2.0	9.7±0.5	948.6	Parallel(with steel wire)
H07VVH6-F	5	10	50.4±2.0	9.7±0.5	1115	Parallel(with steel wire)
H07VVH6-F	6	10	57.3±2.0	9.7±0.5	1281.4	Parallel(with steel wire)
H07VVH6-F	7	10	64.2±2.5	9.7±0.5	1447.8	Parallel(with steel wire)
H07VVH6-F	8	10	72.9±2.5	9.7±0.5	1638.8	Parallel(with steel wire)
H07VVH6-F	9	10	79.8±2.5	9.7±0.5	1805.2	Parallel(with steel wire)
H07VVH6-F	10	10	86.7±2.5	9.7±0.5	1971.6	Parallel(with steel wire)
H07VVH6-F	11	10	91.8±2.5	9.7±0.5	2113.3	Parallel(with steel wire)
