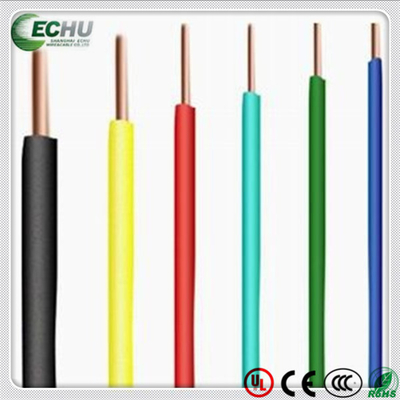

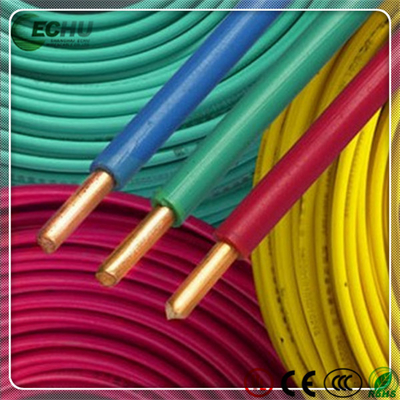

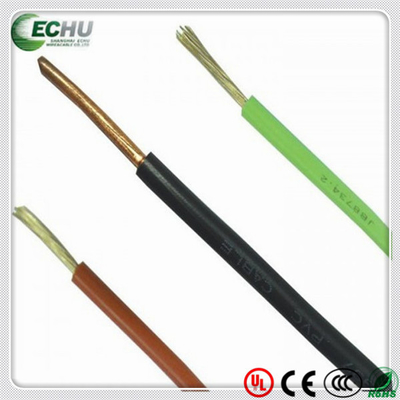

Electrical Cable Wire for House Building H07V-R CE Certificated Electrical Wire, ECHU Electrical Cable

Electrical Cable Wire for House Building H07V-R CE Certificated Electrical Wire, ECHU Electrical Cable

Brand Name: ECHU
Model Number: BV, H07V-U
MOQ: 100M
Price: USD0.205-1.218/M
Payment Terms: T/T, Western Union
Supply Ability: 10000KM/week
Detail Information
Place of Origin:
Shanghai, China
Certification:
CCC, CE
Packaging Details:
wooden reel/wooden box
Supply Ability:
10000KM/week
Product Description

house cable wire



Place of Origin :Shanghai, China.
Brand Name: ECHU  / OEM
Model Number :AVR,RV,BVR,BV,H07V-U,H05V-U, H05V-R, H07V-R,H07V-K,H05V-K,H05V2-K, H07V2-K
Insulation Material :PVC
Type: Low Voltage


Applications:



PVC hook-up wire as internal wiring of electrical appliances is used in movable appliances, communication equipments and electronic transmission equipment, such as electric control box, distribution box, telephone exchange and other related situations, For the monolayer insulation construction , the cable can not be used in external equipments ( not work as tray cables).



Properties:

High insulation , excellent properties, bright coloue



structure:

CONDUCTOR:BARE,FINE COPPER STRANDS ACC. TO VDE 0281.3,HD21.3,60227.3,LDT GBT3956

INSULATION:PVC TL1 FLAME RESISTANCE (Acc. to VDE 0482.part 265-2-1 resp.EN 50265-2-1 AND IEC 60332-1).

                          single colour and multicoloured.
Temperature range:

Fixed installation:-5C TO +70C/105C

Special installation: -30C to +70C/105C



Rated Voltage: (V): <0.5MM2: U0/U 300/300V

                                   0.5-1.5MM2 : U0/U 300/500V

                                   >1.5MM2: U0/U  450/750V



Test Volatge(v):  1500V  2000V   2500V

10MOHM x 1KM





Type Spec. Cond. Root No Cond.Dia Weight KG/KM External Diameter mm
Least   upst
H05V-U 0.5 1 0.8 9.7 2.0 - 2.2
H05V-U 0.75 1 0.98 12.6 2.2 - 2.4
H05V-R 0.75 7 0.37 13.0 2.3 - 2.5
H05V-U 1 1 1.13 15.3 2.3 - 2.5
H05V-R 1 7 0.43 16.1 2.5 - 2.7
H07V-U 1.5 1 1.38 21.9 2.8 - 3.0
H07V-R 1.5 7 0.52 22.5 3.0 - 3.2
H07V-U 2.5 1 1.78 34.0 3.4 - 3.6
H07V-U 4 1 2.25 49.3 3.9 - 4.1
H07V-U 6 1 2.76 69.5 4.4 - 4.6
H07V-R 10 7 1.35 117.6 6.1 - 6.3
H07V-R 16 7 1.7 174.6 7.1 - 7.4
H07V-R 25 7 2.14 276.0 8.8 - 9.1
H07V-R 35 7 2.52 367.9 10.0 - 10.5
H07V-R 50 19 1.83 525.0 11.7 - 12.2
H07V-R 70 19 2.14 686.3 13.5 - 14.0
